1-DOOR REFRIGERATED BEVERAGE COUNTER, 680mm DEPTH
BIR AT NU 580 H815 650×680 SX 230/50 R134a
Professional refrigerated drinks counter with AISI 304 stainless steel frame, doors, drawers, compartments, and electrical panels; AISI 430 stainless steel interior, top, and bottom. Without built-in motor, equipped with an R134a valve, ventilated refrigeration with a corrosion-resistant painted evaporator. Automatic single-pause defrosting, automatic condensate evaporation for the built-in motorized line, non-returnable drain for the remote version. Condensate evaporation tray located under the evaporator. Internal door fittings: 1 perforated shelf 438x500 on U-shaped runners.
Caratteristiche

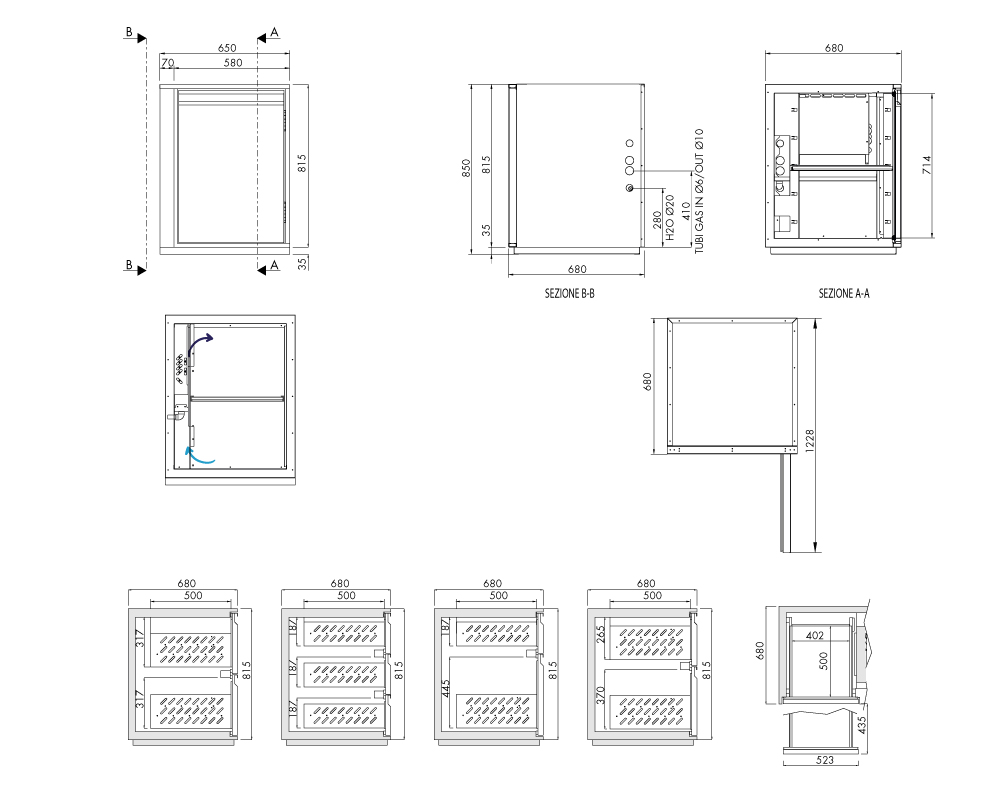

Dimensions and weights
Length
650
Depth
680
Height
850
Net weight (Kg)
57
Gross weight (Kg)
72
Net capacity (L)
138
Gross capacity (L)
233
Insulation thickness (mm)
45
Door opening dimensions in mm (WxH)
479x714
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R134a
Defrosting
Automatic with simple pause
Control
No
Condensate drainage
Ground discharge
Power consumption (W)
62
Power consumption (A)
0.4
Construction materials
Frame, doors, drawers, compartments and electrical panels in AISI 304 stainless steel; inside, upper side and underside in AISI 430 stainless steel
Output (-10°C) (W)
300
General specifications
Operating temperature
+4°/+8°C
Refrigeration
Ventilated
Door
Door with easily removable magnetic seal
Included accessories
Pierced shelf 500x460/380mm for door - flow= 20Kg
Energy specifications
Climate class
4
