1-DOOR REFRIGERATED COUNTER FOR CATERING, -2°C/+8°C
PRM AT MT 480 H700 935×660 SX -2+8 230/50 R290
Professional GN Premium refrigerated counter with frame, doors, drawers, compartment, side panel opposite pipe outlet, and electrical panels made of AISI 304 SB stainless steel; interior, roof, and external base made of AISI 304 2B stainless steel. Built-in motor with R290 gas. Fan-assisted refrigeration with corrosion-resistant painted evaporator, automatic defrosting with heating element, automatic condensate evaporation for the built-in motorized line, disposable drain for the non-motorized line. Internal door configuration: one GN 1/1 grid, 530x325mm.
Caratteristiche

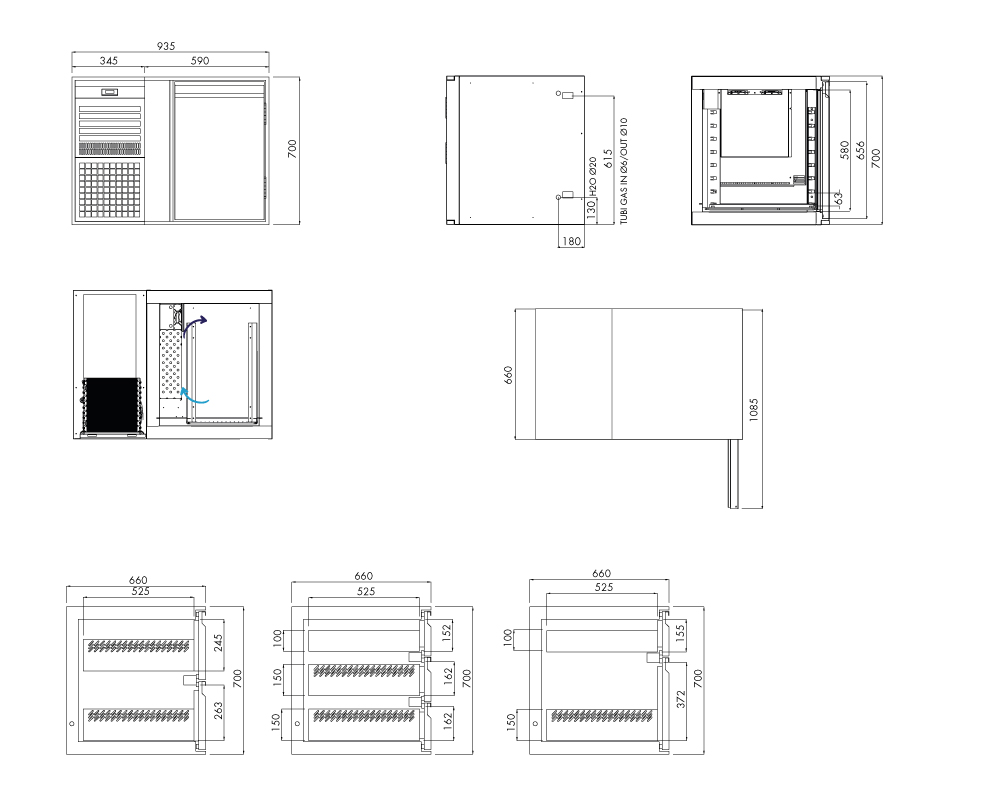

Dimensions and weights
Length
935
Depth
660
Height
700
Net weight (Kg)
70
Gross weight (Kg)
107
Net capacity (L)
93
Gross capacity (L)
149
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
353x580
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic by hot gas
Control
Compact touch display
Condensate drainage
Automatic
Power consumption (W)
277
Power consumption (A)
2.48
Construction materials
Frame, doors, drawers, inside, opposite pipe output side and electrical panels in AISI 304 SB stainless steel; upper side and external underside in AISI 304 2B stainless steel
Output (-10°C) (W)
335
Defrost heater
260
Refrigerant charge (Kg)
0.085
GWP
3
General specifications
Operating temperature
-2°/+8°C Chilled food
Refrigeration
Ventilated
Door
Yes
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
4
Type
Horizontal Cabinet
Daily energy consumption E24 h
1.3
Annual energy consumption AEC kWh/annum
474
Performance
Normal duty
Category
Conservation
Energy efficiency index EEI
23.4
Energy efficiency class
A
