BASIC LINE 2-DOOR PASTRY REFRIGERATED COUNTER, 0/+8°C
DAI UR 519 H660 1160×700 S TN SP50 NP 230/50 R134a
Professional refrigerated counter in AISI 304 stainless steel, without built-in motor, equipped with R134a valve, 50mm polyurethane foam insulation, ventilated refrigeration with corrosion-resistant painted evaporator, automatic single-pause defrosting. Automatic condensation water evaporation for the built-in motor line, disposable drain for the remote version. Internal door fittings: one 600x400mm grid on stainless steel ""U"" runners.
Caratteristiche

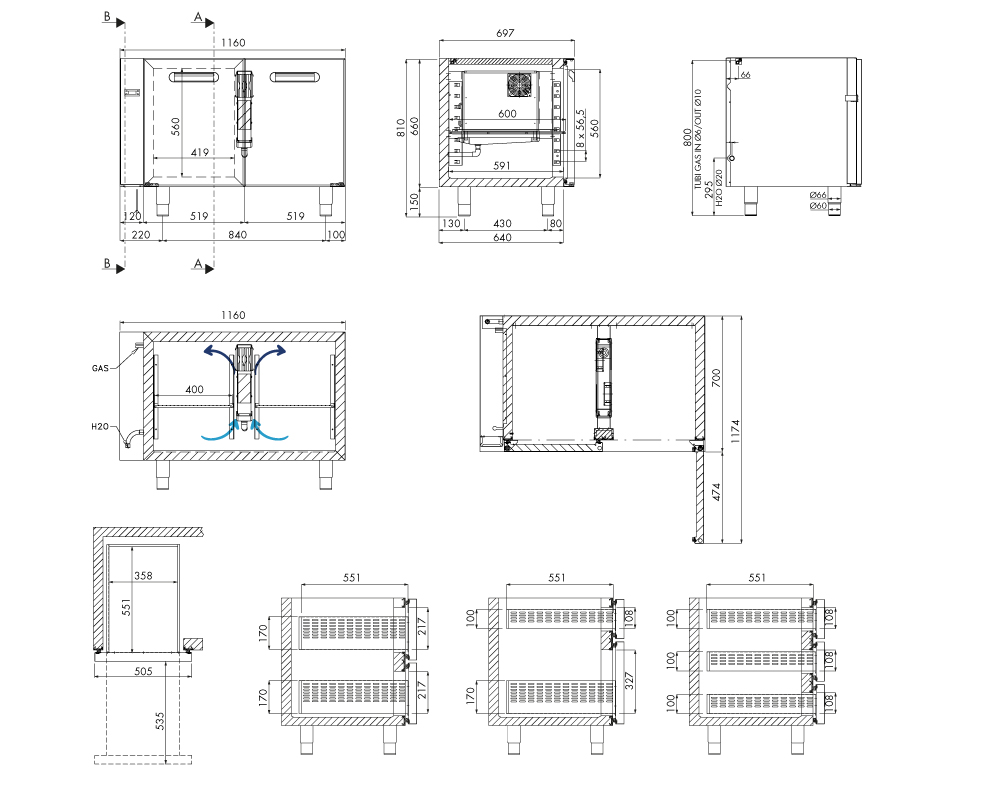

Dimensions and weights
Length
1160
Depth
700
Height
810
Net weight (Kg)
57
Gross weight (Kg)
77
Net capacity (L)
238
Gross capacity (L)
347
Insulation thickness (mm)
50
Door opening dimensions in mm (WxH)
419x560
Feet
4
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R134a
Defrosting
Automatic with simple pause
Control
Compact touch display
Condensate drainage
Ground discharge
Power consumption (W)
62
Power consumption (A)
0.33
Construction materials
Stainless steel AISI 304 with external bottom on zinc plated steel and back on stainless steel AISI 430
Output (-10°C) (W)
340
General specifications
Operating temperature
0°/+8°C Chilled food
Refrigeration
Ventilated
Door
Door with easily removable magnetic seal
Included accessories
1 plastic coated grills en 600x400mm - grill flow= 20kg
Energy specifications
Climate class
4
