COMBI REFRIGERATED COUNTER
DAI MT CB H660 1980×700 T BT/TN SP60 PL 230/50
Professional COMBINED refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, ventilated refrigeration with anti-corrosion painted evaporator, automatic defrosting with single pause in the 0/+8°C version, with resistance in the -18°/-22°C version. Automatic condensate evaporation for plug-in version; gravity drain for remote version. Internal fittings per door: 1 GN1/1 530x325mm grid on stainless steel U runners.
Caratteristiche

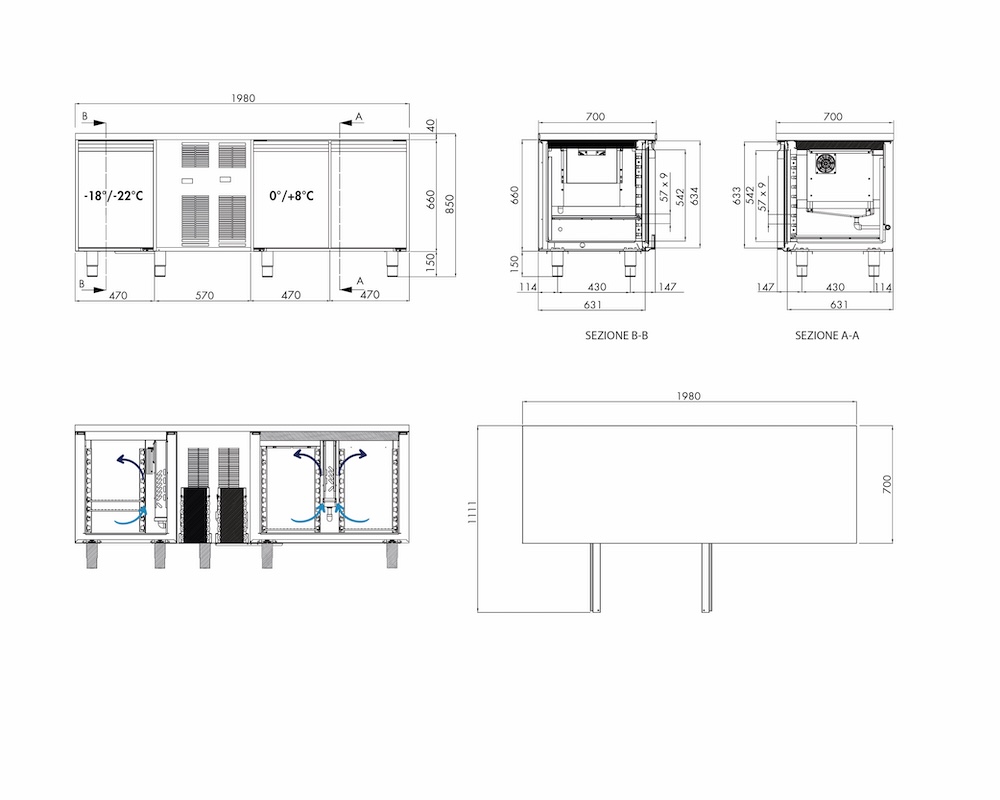

Dimensions and weights
Length
1980
Depth
700
Height
850
Net weight (Kg)
160
Gross weight (Kg)
192
Net capacity (L)
264
Gross capacity (L)
443
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
362x542
Feet
8
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas (Section 1)
R290
Refrigerant gas (Section 2)
R290
Defrosting
Automatic throught electrical resistance

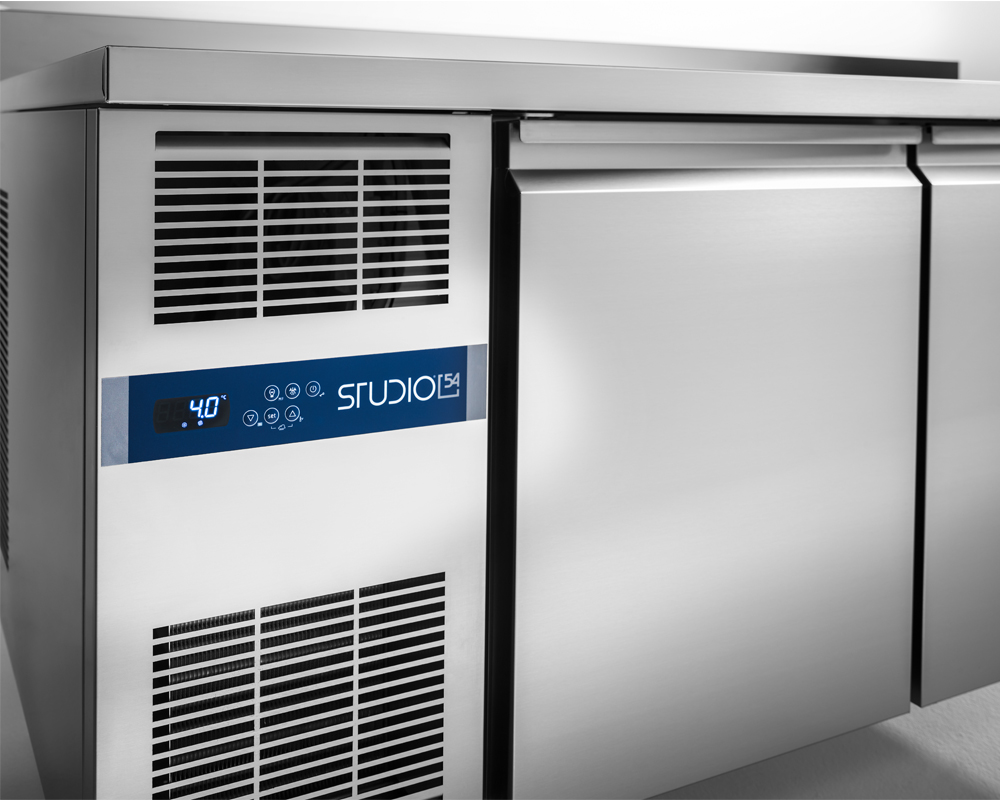

Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (A) (Section 1)
2.25
Power consumption (W) (Section 2)
272
Power consumption (A) (Section 2)
1.61
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (W) (Section 1)
220
Output (W) (Section 2)
335
Defrost heater (Section 1)
600
Refrigerant charge (Kg) (Section 1)
0.07
Refrigerant charge (Kg) (Section 2)
0.085
General specifications
Operating temperature (Section 1)
-18°/-22°C
Operating temperature (Section 2)
0°/+8°C
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
5
Net refrigeration volume Vnref (L) (Section 2)
176
Net freezing volume Vnfrz (L) (Section 1)
88
Type
Horizontal Cabinet
Daily energy consumption E24 h (Section 1)
5.4
Daily energy consumption E24 h (Section 2)
1.18
Annual energy consumption AEC kWh/annum (Section 1)
1971
Annual energy consumption AEC kWh/annum (Section 2)
431
Performance
High performance - This appliance is intended for use in ambient temperatures up to 40 ° C
Category (Section 1)
Freezing
Category (Section 2)
Conservation
Energy efficiency index EEI
68.11
Energy efficiency class (Section 1)
D
Energy efficiency class (Section 2)
A
