DOUBLE T FREEZER COUNTER
PRM AT SM TN-BT H760 1430×700 DX 230/50 R290 DOUBLE-T
Performance and flexibility are the guidelines that inspired our designers in the creation of the Double T refrigerated table. A product true to the Studio 54 Smart System philosophy, it combines two separate systems in a single machine, with each GN 2/1 drawer adjustable within a range from -22°C to +8°C.
A product that can function either as a refrigerator or a freezer — the ultimate versatility in one machine.
Caratteristiche

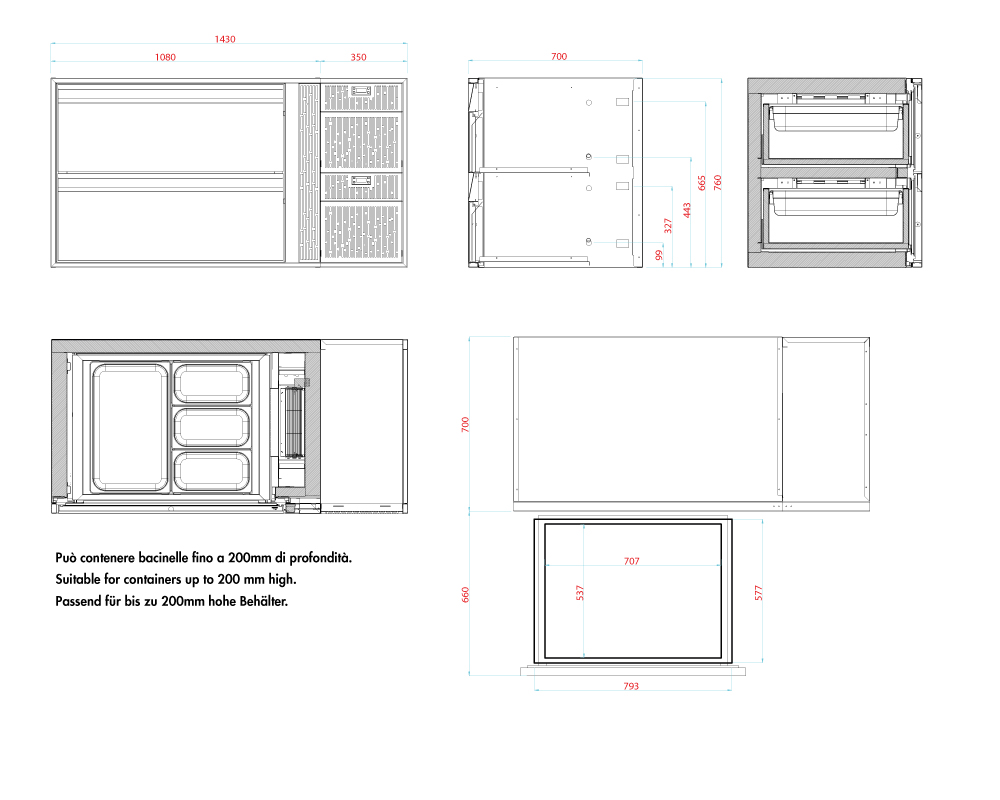

Dimensions and weights
Length
1430
Depth
700
Height
760
Net weight (Kg)
195
Gross weight (Kg)
215
Insulation thickness (mm)
60
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas (Section 1)
R290
Refrigerant gas (Section 2)
R290
Defrosting
Automatic by hot gas
Control
Compact touch display
Condensate drainage
Automatic
Power consumption (W) (Section 1)
436
Power consumption (A) (Section 1)
2.55
Power consumption (W) (Section 2)
436
Power consumption (A) (Section 2)
2.55
Construction materials
Frame, doors, drawers, inside, opposite pipe output side and electrical panels in AISI 304 SB stainless steel; upper side and external underside in AISI 304 2B stainless steel
Output (W) (Section 1)
220
Output (W) (Section 2)
220
Refrigerant charge (Kg) (Section 1)
0.075
Refrigerant charge (Kg) (Section 2)
0.075
General specifications
Operating temperature (Section 1)
-18°/-22°C Frozen food
Operating temperature (Section 2)
-2°/+8°C Chilled food
Refrigeration
Ventilated
Energy specifications
Climate class
4
