ELITE LINE 2-DOOR REFRIGERATED COUNTER FOR PASTRY, -18°/-22°C
DAI MT 519 H710 1400×800 EL BT SP60 PA 230/50 R290
Professional refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, 5 touch control panel for quick and intuitive use. Ventilated refrigeration with anti-corrosion painted evaporator, automatic defrosting with simple pause in the 0/+8°C version, with resistance in the -18°/-22°C version. Automatic condensation water evaporation for line with built-in motor, disposable drain for line without motor. Internal fittings per door: 1 600x400mm grid on stainless steel U runners.
Caratteristiche

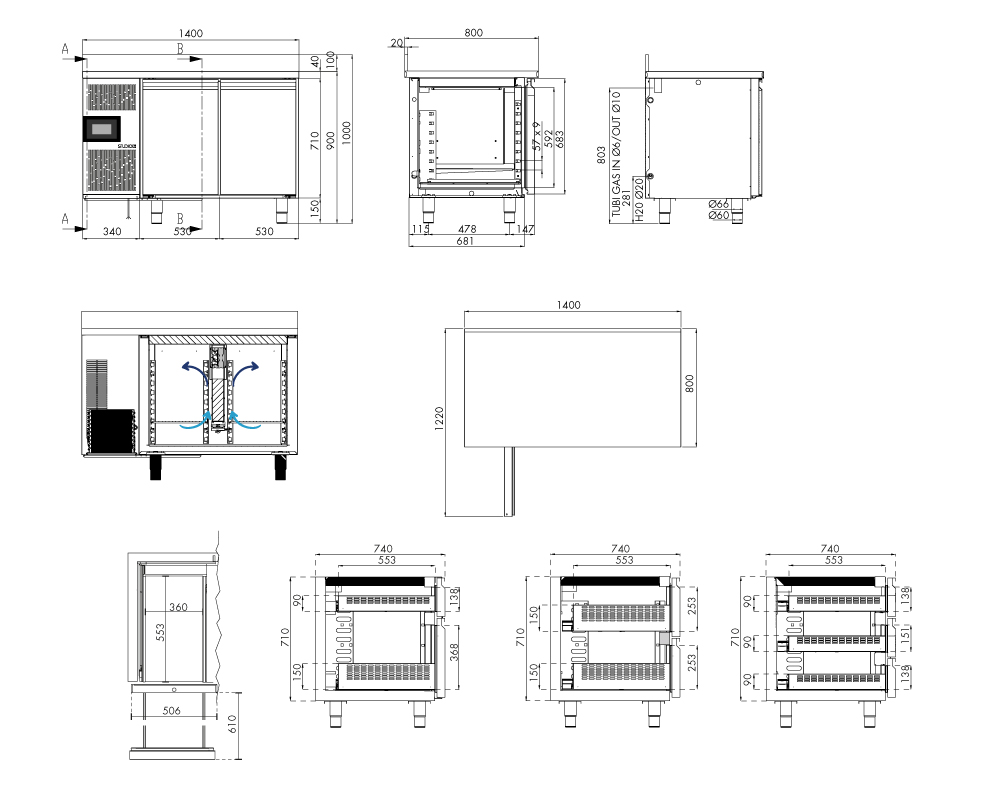

Dimensions and weights
Length
1400
Depth
800
Height
1000
Net weight (Kg)
115
Gross weight (Kg)
158
Net capacity (L)
264
Gross capacity (L)
304
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
422x592
Feet
4
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic throught electrical resistance
Control
5'' full touch display with flush panel screen and usb port
Condensate drainage
Automatic
Power consumption (W)
627
Power consumption (A)
4.45
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-30°C) (W)
420
Defrost heater
600
Refrigerant charge (Kg)
0.09
GWP
3
General specifications
Operating temperature
-18°/-22°C Frozen food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills en 600x400mm - grill flow= 20kg
Energy specifications
Climate class
5
Net freezing volume Vnfrz (L)
264
Type
Horizontal Cabinet
Daily energy consumption E24 h
7.86
Annual energy consumption AEC kWh/annum
2869
Performance
High performance - This appliance is intended for use in ambient temperatures up to 40 ° C
Category
Freezing
Energy efficiency index EEI
73.15
Energy efficiency class
D
