ELITE LINE 4-DOOR REFRIGERATED COUNTER FOR CATERING, 0/+8°C
DAI MT 460 H710 2200×700 EL TN SP60 PL 230/50 R290
Professional refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, 5 touch control panel for quick and intuitive use. Ventilated refrigeration with anti-corrosion painted evaporator, automatic defrosting with simple pause in the 0/+8°C version, with resistance in the -18°/-22°C version. Automatic condensation water evaporation for line with built-in motor, disposable drain for line without motor. Internal fittings per door: 1 GN1/1 530x325mm grid on stainless steel U runners.
Caratteristiche

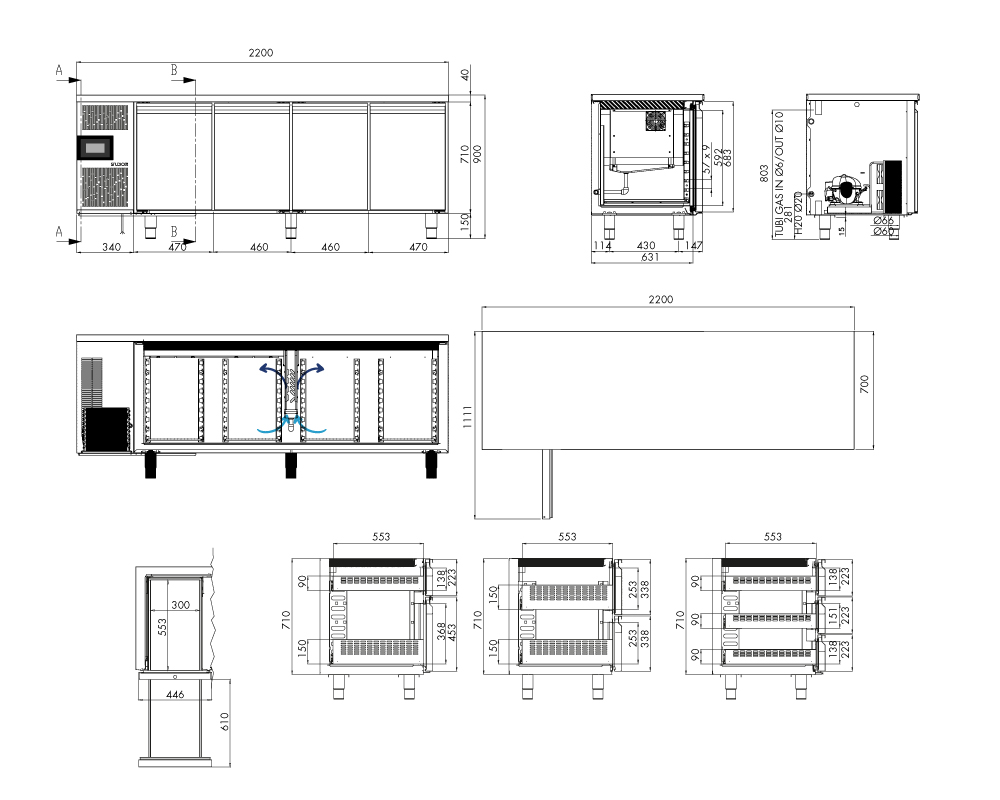

Dimensions and weights
Length
2200
Depth
700
Height
900
Net weight (Kg)
146
Gross weight (Kg)
176
Net capacity (L)
384
Gross capacity (L)
641
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
362x592
Feet
5
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic with simple pause
Control
5'' full touch display with flush panel screen and usb port
Condensate drainage
Automatic
Power consumption (W)
370
Power consumption (A)
2.44
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-10°C) (W)
522
Refrigerant charge (Kg)
0.1
GWP
3
General specifications
Operating temperature
0°/+8°C Chilled food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
5
Type
Horizontal Cabinet
Daily energy consumption E24 h
1.9
Annual energy consumption AEC kWh/annum
694
Performance
High performance - This appliance is intended for use in ambient temperatures up to 40 ° C
Category
Conservation
Energy efficiency index EEI
25.03
Energy efficiency class
B
