ELITE LINE 4-DOOR REFRIGERATED COUNTER FOR CATERING, -18°/-22°C
DAI MT 460 H710 2200×700 EL BT SP60 NP 230/50 R290
Professional refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, 5 touch control panel for quick and intuitive use. Ventilated refrigeration with anti-corrosion painted evaporator, automatic defrosting with simple pause in the 0/+8°C version, with resistance in the -18°/-22°C version. Automatic condensation water evaporation for line with built-in motor, disposable drain for line without motor. Internal fittings per door: 1 GN1/1 530x325mm grid on stainless steel U runners.
Caratteristiche

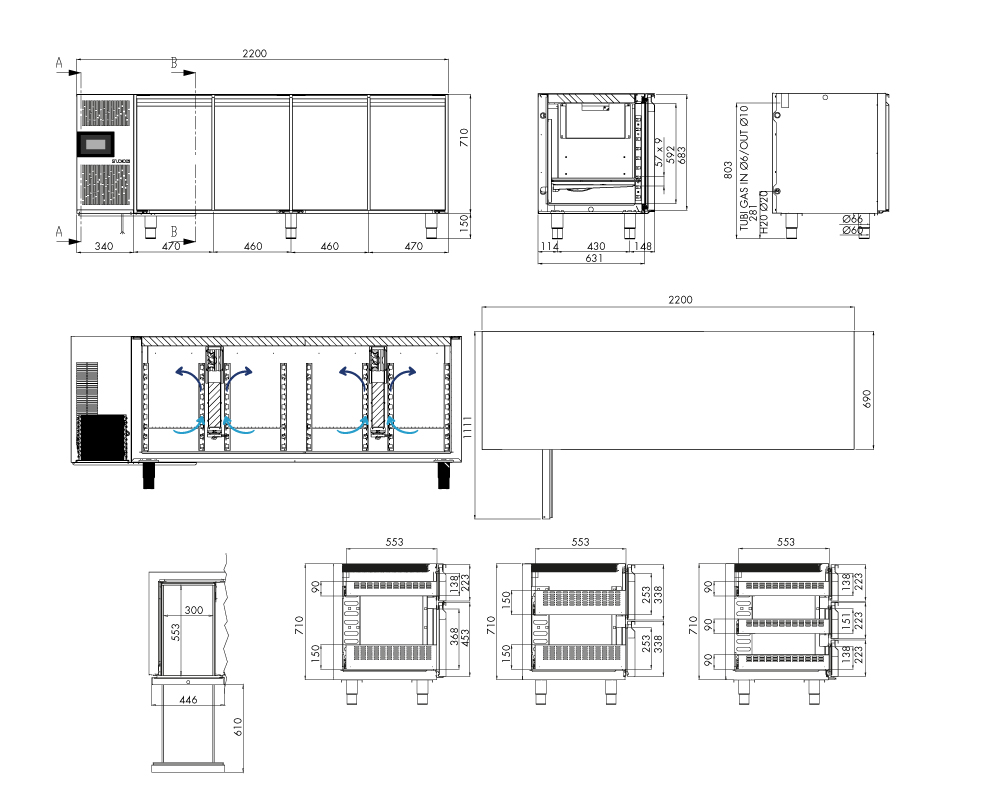

Dimensions and weights
Length
2200
Depth
700
Height
860
Net weight (Kg)
123
Gross weight (Kg)
153
Net capacity (L)
384
Gross capacity (L)
641
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
362x592
Feet
5
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic throught electrical resistance
Control
5'' full touch display with flush panel screen and usb port
Condensate drainage
Automatic
Power consumption (W)
979
Power consumption (A)
5.19
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-30°C) (W)
710
Defrost heater
1200
Refrigerant charge (Kg)
0.13
GWP
3
General specifications
Operating temperature
-18°/-22°C Frozen food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
5
Net freezing volume Vnfrz (L)
384
Type
Horizontal Cabinet
Daily energy consumption E24 h
10.7
Annual energy consumption AEC kWh/annum
3906
Performance
High performance - This appliance is intended for use in ambient temperatures up to 40 ° C
Category
Freezing
Energy efficiency index EEI
84.49
Energy efficiency class
E
