ELITE LINE 700L REFRIGERATED UPRIGHT CABINET FOR CATERING, -18° to -22°C
OAS UR 700 H2125 735×865 EL BT SP90 230/50 R452A
Professional refrigerated cabinet in AISI 304 stainless steel with 75mm polyurethane foam insulation, with 5 touch screen display for quick and intuitive use. Without built-in motor, prepared for R134a valve, ventilated refrigeration with anti-corrosion painted evaporator, automatic hot gas defrosting, automatic condensation water evaporation, internal door configuration: 3 GN2/1 650x530mm grids on stainless steel U runners, self-closing solid doors with magnetic gasket.
Caratteristiche

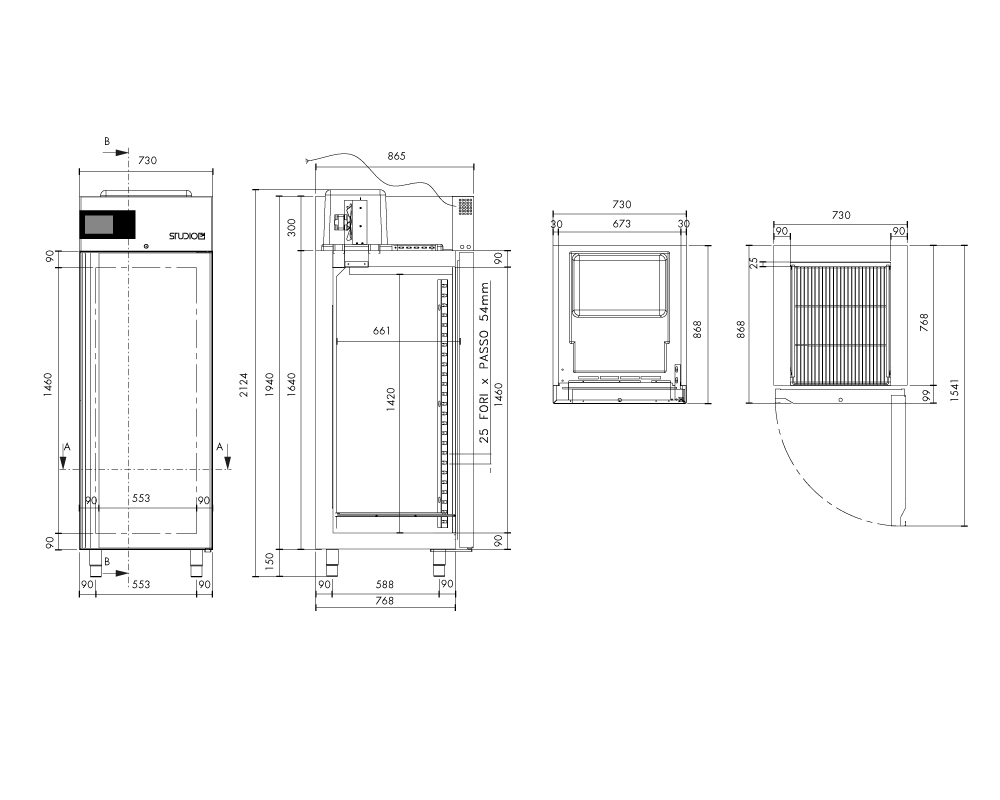

Dimensions and weights
Length
735
Depth
868
Height
2125
Net weight (Kg)
104
Gross weight (Kg)
144
Net capacity (L)
465
Gross capacity (L)
550
Insulation thickness (mm)
90
Door opening dimensions in mm (WxH)
553x1460
Feet
4
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R452A
Defrosting
Automatic throught electrical resistance
Control
5'' full touch display with flush panel screen and usb port
Condensate drainage
Automatic
Power consumption (W)
75
Power consumption (A)
0.42
Construction materials
AISI 304 stainless steel with galvanised steel on the outside back, bottom and top
Output (-30°C) (W)
400
Evaporation heater
180
Defrost heater
530
General specifications
Operating temperature
-18°/-22°C Frozen food
Refrigeration
Ventilated
Lighting
LED lighting
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
3 plastic coated grills GN2/1 650x530mm - grill flow= 40kg
Energy specifications
Climate class
5
