MEAT 700L REFRIGERATED UPRIGHT CABINET WITH GLASS DOOR, -2°C/+8°C
OAS MT CR 1400 H2095 1460×835 -2+8 SP75 PV 230/50 R290
Professional Meat refrigerated cabinet in AISI 304 stainless steel, 75mm polyurethane foam insulation, built-in motor with R290 gas. Ventilated refrigeration with anti-corrosion painted evaporator, automatic hot gas defrosting, automatic condensation water evaporation. Internal door fittings: 6 stainless steel posts per door. Self-closing glass doors with magnetic gaskets.
Caratteristiche

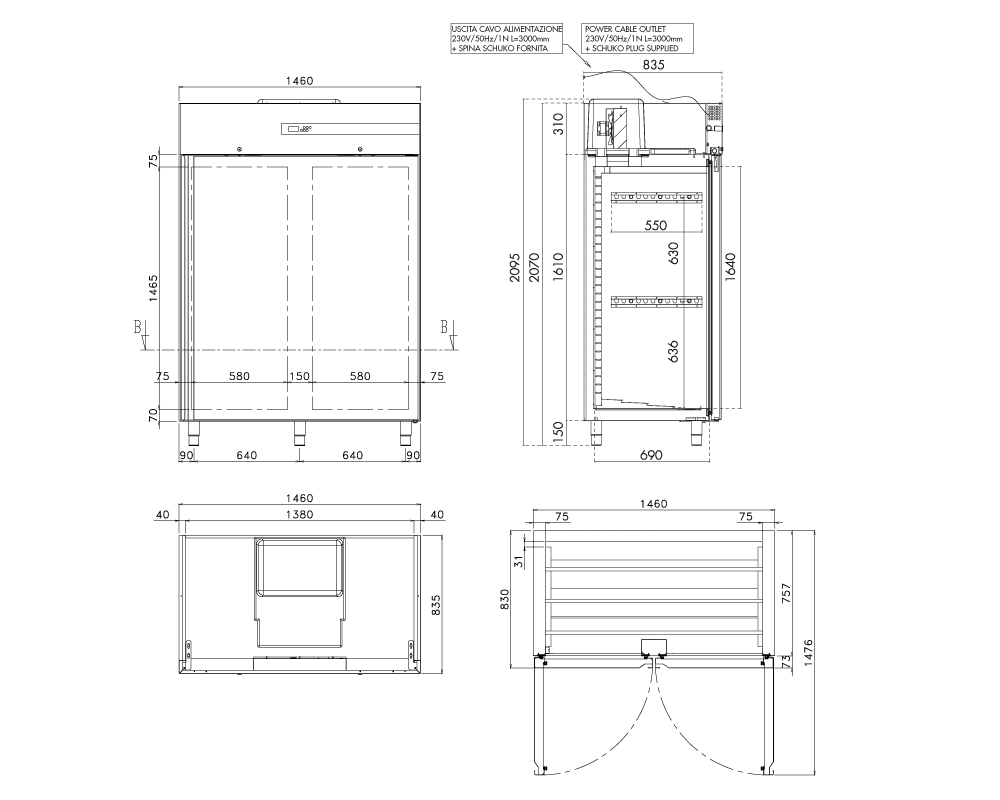

Dimensions and weights
Length
1460
Depth
835
Height
2095
Net weight (Kg)
222
Gross weight (Kg)
261
Net capacity (L)
930
Gross capacity (L)
1320
Insulation thickness (mm)
75
Door opening dimensions in mm (WxH)
580x1460
Feet
5
Technical specifications
Lighting power consumption
34
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic by hot gas
Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (W)
292
Power consumption (A)
1.35
Construction materials
AISI 304 stainless steel with galvanised steel on the outside back, bottom and top
Output (-10°C) (W)
510
Refrigerant charge (Kg)
0.13
GWP
3
General specifications
Operating temperature
-2°/+8°C Chilled food
Refrigeration
Ventilated
Lighting
LED strip lighting
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
6 stainless steel posts per door
Energy specifications
Climate class
4
Type
Vertical Cabinet
Daily energy consumption E24 h
4.4
Annual energy consumption AEC kWh/annum
1606
Performance
Normal duty
Category
Conservation
Energy efficiency index EEI
75.15
Energy efficiency class
E
