TOP LINE 1-DOOR FREEZER COUNTER FOR CATERING, -18°C/-22°C
DAI UR 460 H710 820×700 T BT SP60 PL 230/50 R452A
Professional refrigerated counter in AISI 304 stainless steel, without built-in motor, equipped with R452A valve, 60mm polyurethane foam insulation, ventilated refrigeration with anti-corrosion painted evaporator, automatic defrosting with single pause in the 0/+8°C version, with resistance in the -18°/-22°C version. Automatic condensate evaporation for plug-in version; gravity drain for remote version. Internal fittings per door: 1 GN1/1 530x325mm grid on stainless steel U runners.
Caratteristiche

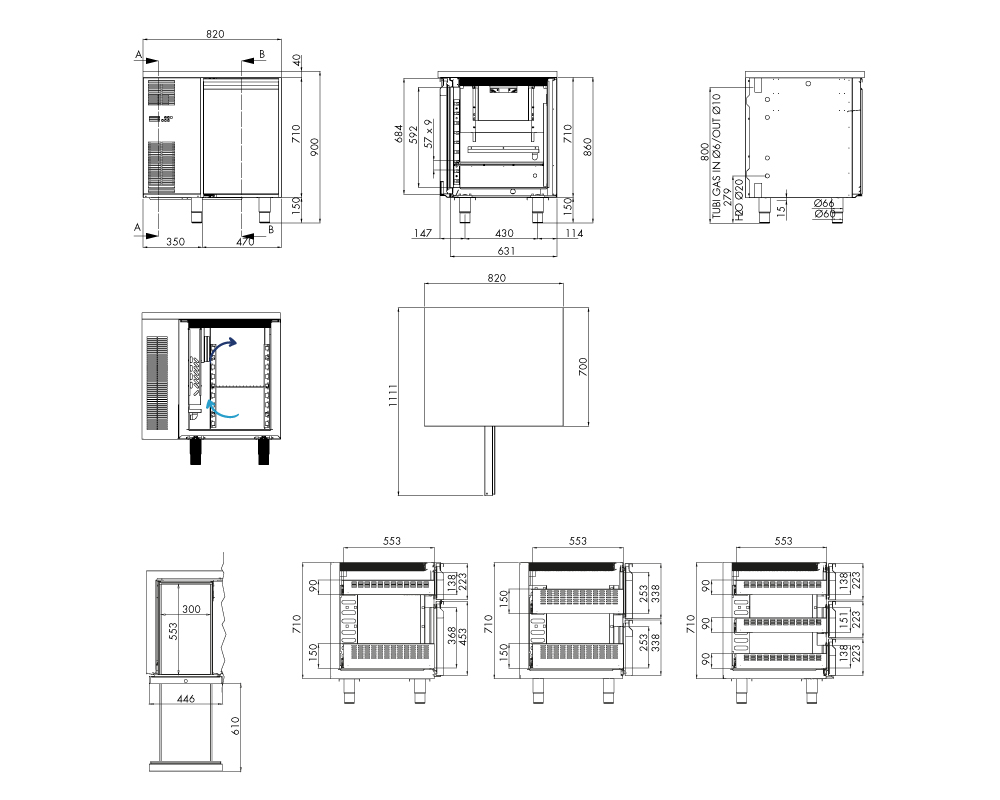

Dimensions and weights
Length
820
Depth
700
Height
900
Net weight (Kg)
80
Gross weight (Kg)
99
Net capacity (L)
96
Gross capacity (L)
176
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
362x592
Feet
6
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R452A
Defrosting
Automatic throught electrical resistance
Control
Electronic, flush-mounted panel display
Condensate drainage
Ground discharge
Power consumption (W)
82
Power consumption (A)
0.53
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-30°C) (W)
270
Defrost heater
640
General specifications
Operating temperature
-18°/-22°C Frozen food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
5
