TOP LINE 1-DOOR REFRIGERATED COUNTER FOR PASTRY, -18°/-22°C
DAI SM 519 H660 880×800 T BT SP60 PL 230/50 R290
SMART professional refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, only 220mm wide. 60mm polyurethane foam insulation, ventilated refrigeration with anti-corrosion painted evaporator, automatic single-pause defrosting in the 0/+8°C version, with heating element in the -18°/-22°C version. Automatic condensation water evaporation. Internal door fittings: 1 600x400mm grid on stainless steel U runners.
Caratteristiche

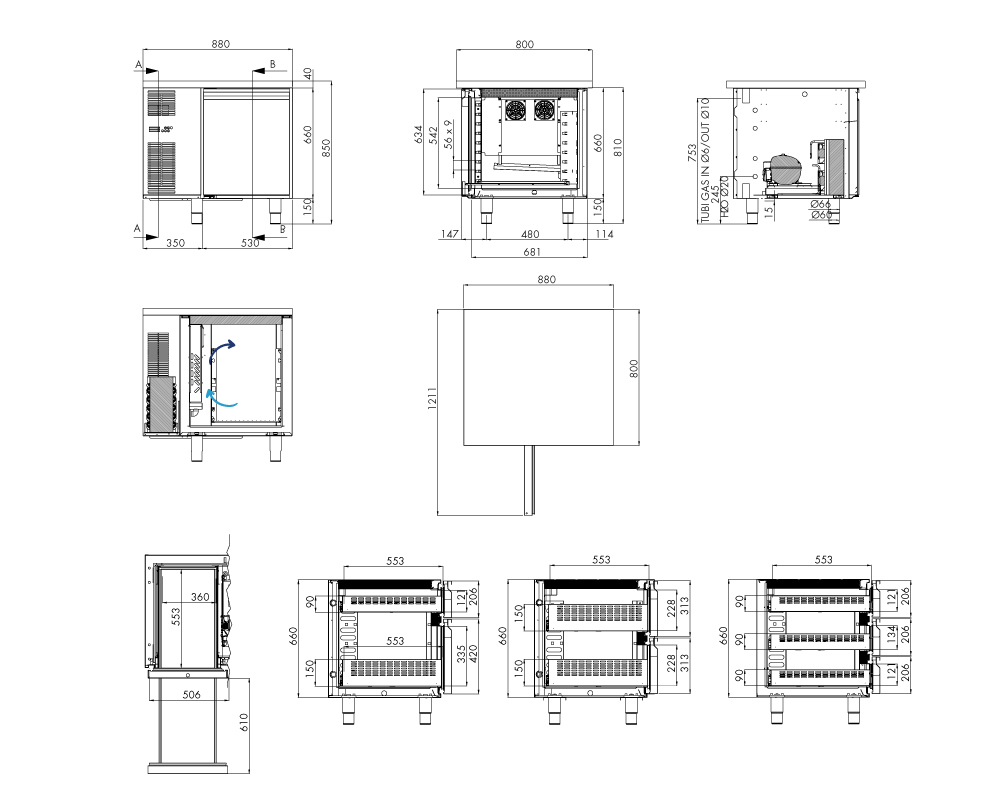

Dimensions and weights
Length
880
Depth
800
Height
850
Net weight (Kg)
80
Gross weight (Kg)
99
Net capacity (L)
122
Gross capacity (L)
198
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
422x542
Feet
6
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic throught electrical resistance
Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (W)
327
Power consumption (A)
2.23
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-30°C) (W)
220
Defrost heater
600
Refrigerant charge (Kg)
0.12
GWP
3
General specifications
Operating temperature
-18°/-22°C Frozen food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills en 600x400mm - grill flow= 20kg
Energy specifications
Climate class
4
Net freezing volume Vnfrz (L)
122
Type
Horizontal Cabinet
Daily energy consumption E24 h
5.87
Annual energy consumption AEC kWh/annum
2143
Performance
Normal duty
Category
Freezing
Energy efficiency index EEI
69.28
Energy efficiency class
D
