TOP LINE 2-DOOR PASTRY REFRIGERATED COUNTER -2°/+8°C
DAI MT PT 519 H660 1400×800 T -2+8 SP60 PA 230/50 R290
Professional PASTRY refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, ventilated refrigeration with forced air recirculation and a corrosion-resistant painted evaporator. Hot gas defrosting, automatic condensate evaporation for the built-in motorized line, disposable drain for the remote version. Internal door fittings: 3 pairs of L slides.
Caratteristiche

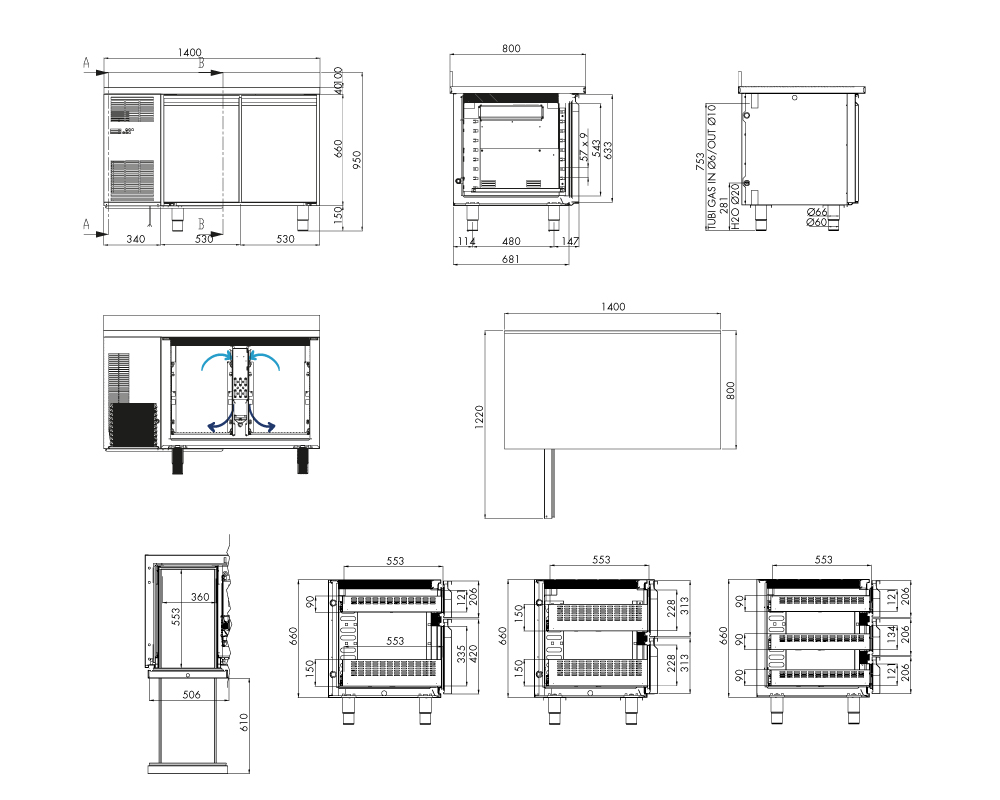

Dimensions and weights
Length
1400
Depth
800
Height
950
Net weight (Kg)
108
Gross weight (Kg)
130
Net capacity (L)
245
Gross capacity (L)
347
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
422x542
Feet
4
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic throught electrical resistance
Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (W)
268
Power consumption (A)
2.28
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-10°C) (W)
341
Defrost heater
260
Refrigerant charge (Kg)
0.09
General specifications
Operating temperature
-2°/+8°C Chilled food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
3 “L” runners pairs - max loading capacity for level= 35kg
Energy specifications
Climate class
5
Daily energy consumption E24 h
1.7
Annual energy consumption AEC kWh/annum
621
Energy efficiency index EEI
25.68
Energy efficiency class (Section 1)
B
