TOP LINE 3-DOOR REFRIGERATED COUNTER FOR CATERING, 0/+8°C
DAI MT 460 H710 1740×700 T TN SP60 PL 230/50 R290
Professional refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, ventilated refrigeration with anti-corrosion painted evaporator, automatic defrosting with single pause in the 0/+8°C version, with heating element in the -18°/-22°C version. Automatic condensate evaporation for plug-in version; gravity drain for remote version. Internal fittings per door: 1 GN1/1 530x325mm grid on stainless steel U runners
Caratteristiche

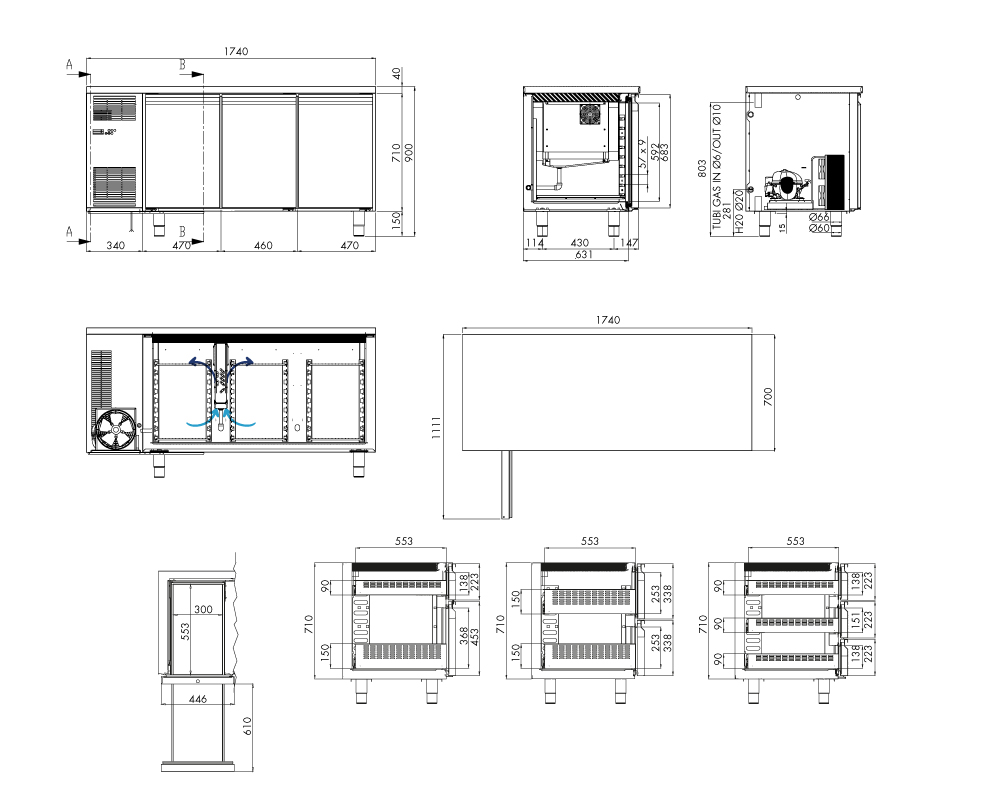

Dimensions and weights
Length
1740
Depth
700
Height
900
Net weight (Kg)
132
Gross weight (Kg)
150
Net capacity (L)
288
Gross capacity (L)
473
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
362x592
Feet
4
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic with simple pause
Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (W)
272
Power consumption (A)
1.61
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-10°C) (W)
335
Refrigerant charge (Kg)
0.085
GWP
3
General specifications
Operating temperature
0°/+8°C Chilled food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
5
Type
Horizontal Cabinet
Daily energy consumption E24 h
1.5
Annual energy consumption AEC kWh/annum
548
Performance
High performance - This appliance is intended for use in ambient temperatures up to 40 ° C
Category
Conservation
Energy efficiency index EEI
21.68
Energy efficiency class
A
