TOP LINE 4-DOOR PASTRY REFRIGERATED COUNTER 0/+8°C
DAI MT PT 519 H660 2440×800 T -2+8 SP60 PL 230/50 R290
Professional PASTRY refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, ventilated refrigeration with forced air recirculation and a corrosion-resistant painted evaporator. Hot gas defrosting, automatic condensate evaporation for the built-in motorized line, disposable drain for the remote version. Internal door fittings: 3 pairs of L slides.
Caratteristiche

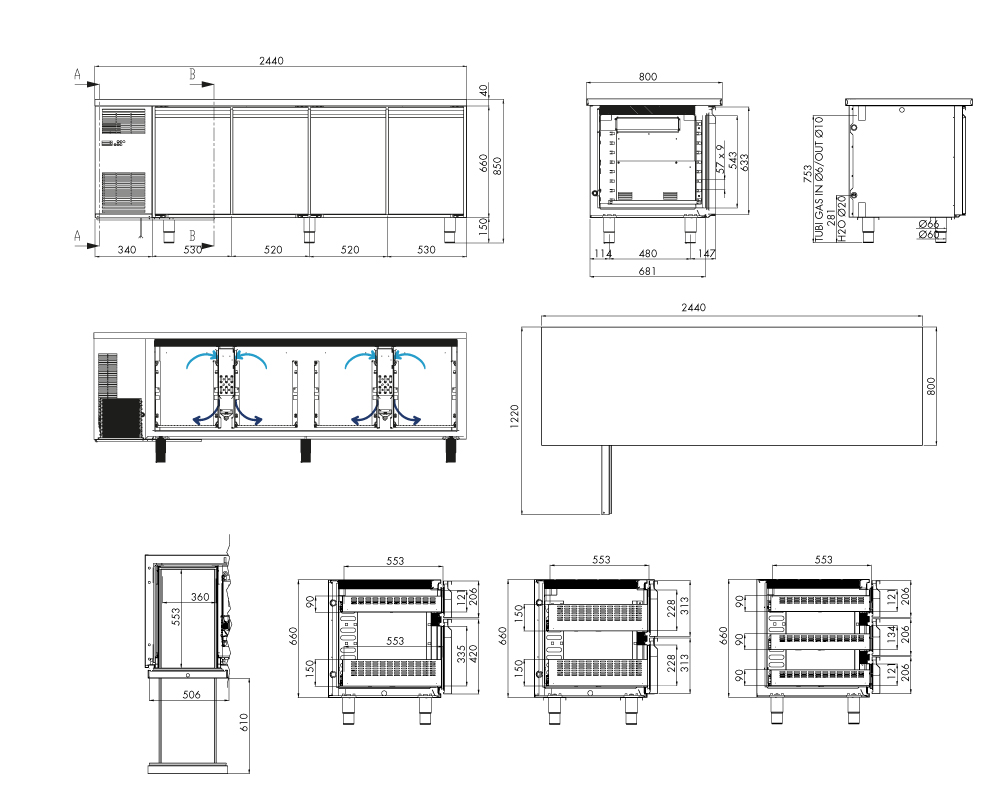

Dimensions and weights
Length
2440
Depth
800
Height
850
Net weight (Kg)
182
Gross weight (Kg)
222
Net capacity (L)
490
Gross capacity (L)
728
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
422x542
Feet
4
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic throught electrical resistance
Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (W)
363
Power consumption (A)
3.51
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-10°C) (W)
522
Defrost heater
260
Refrigerant charge (Kg)
0.13
General specifications
Operating temperature
-2°/+8°C Chilled food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
3 “L” runners pairs - max loading capacity for level= 35kg
Energy specifications
Climate class
5
Daily energy consumption E24 h
2.6
Annual energy consumption AEC kWh/annum
949
Energy efficiency index EEI
31.2
Energy efficiency class (Section 1)
B
