TOP LINE 4-DOOR REFRIGERATED COUNTER FOR CATERING, 0/+8°C
DAI SM 460 H760 2080×700 T TN SP60 PA 230/50 R290
SMART professional refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, only 220mm wide. 60mm polyurethane foam insulation, ventilated refrigeration with anti-corrosion painted evaporator, automatic single-pause defrosting in the 0/+8°C version, with heating element in the -18°/-22°C version. Automatic condensation water evaporation. Internal door configuration: 1 GN1/1 530x325mm grid on stainless steel U runners.
Caratteristiche

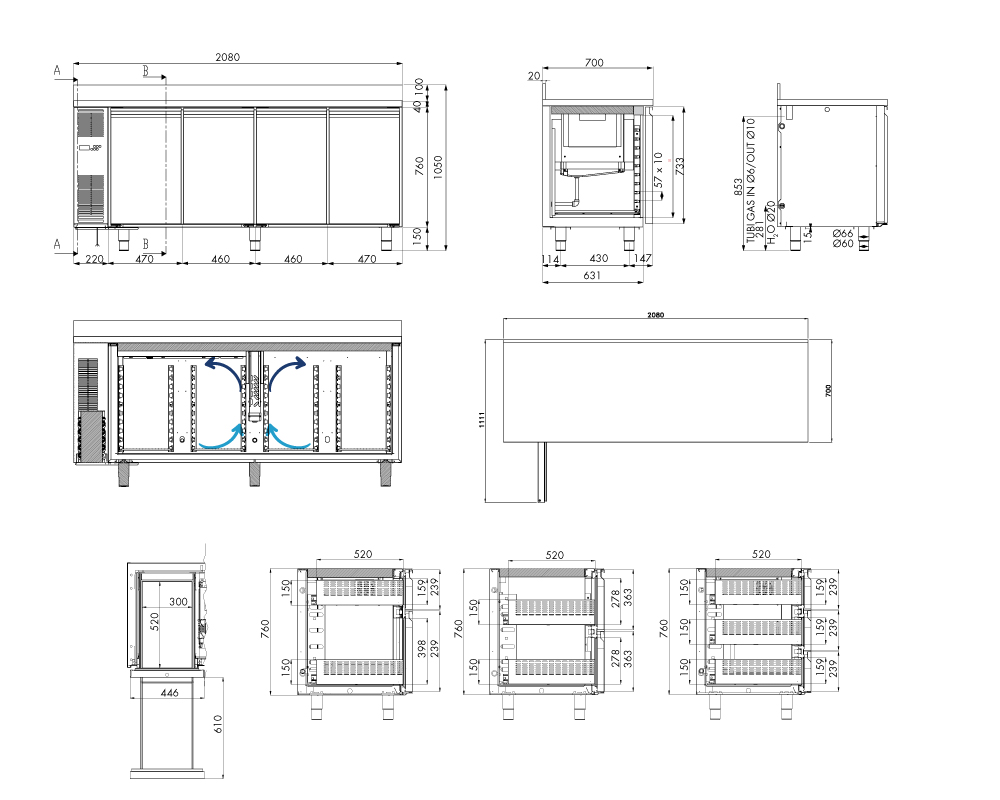

Dimensions and weights
Length
2080
Depth
700
Height
1050
Net weight (Kg)
153
Gross weight (Kg)
176
Net capacity (L)
420
Gross capacity (L)
692
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
362x642
Feet
5
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic with simple pause
Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (W)
375
Power consumption (A)
2.46
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-10°C) (W)
522
Refrigerant charge (Kg)
0.1
GWP
3
General specifications
Operating temperature
0°/+8°C Chilled food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
5
Type
Horizontal Cabinet
Daily energy consumption E24 h
2.05
Annual energy consumption AEC kWh/annum
748
Performance
High performance - This appliance is intended for use in ambient temperatures up to 40 ° C
Category
Conservation
Energy efficiency index EEI
26.13
Energy efficiency class
B
