TOP LINE 4-DOOR REFRIGERATED COUNTER FOR CATERING, -18°/-22°C
DAI MT 460 H660 2200×700 T BT SP60 PA 230/50 R290
Professional refrigerated counter in AISI 304 stainless steel, built-in motor with R290 gas, 60mm polyurethane foam insulation, ventilated refrigeration with anti-corrosion painted evaporator, automatic defrosting with single pause in the 0/+8°C version, with heating element in the -18°/-22°C version. Automatic condensate evaporation for plug-in version; gravity drain for remote version. Internal fittings per door: 1 GN1/1 530x325mm grid on stainless steel U runners
Caratteristiche

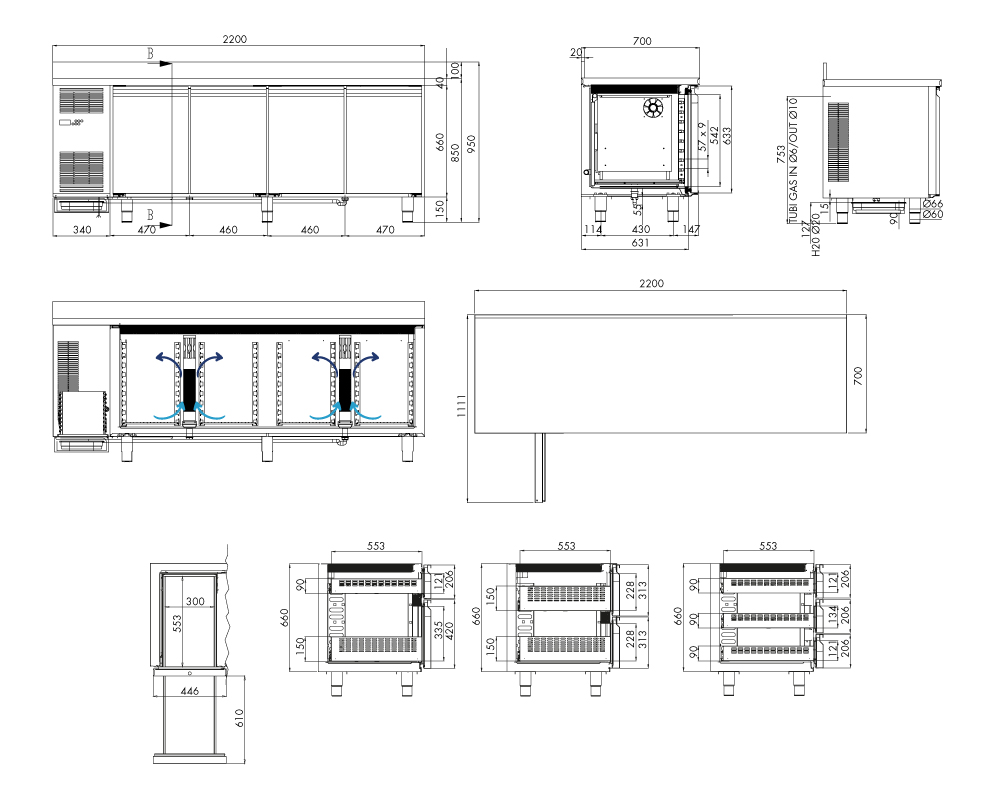

Dimensions and weights
Length
2200
Depth
700
Height
950
Net weight (Kg)
175
Gross weight (Kg)
200
Net capacity (L)
352
Gross capacity (L)
593
Insulation thickness (mm)
60
Door opening dimensions in mm (WxH)
362x542
Feet
5
Technical specifications
Power supply (V)
230
Power supply (Hz)
50
Power supply (N)
1
Refrigerant gas
R290
Defrosting
Automatic throught electrical resistance
Control
Electronic, flush-mounted panel display
Condensate drainage
Automatic
Power consumption (W)
979
Power consumption (A)
5.19
Construction materials
AISI 304 stainless steel with 430 stainless steel outer back and bottom
Output (-30°C) (W)
710
Defrost heater
1200
Refrigerant charge (Kg)
0.105
GWP
3
General specifications
Operating temperature
-18°/-22°C Frozen food
Refrigeration
Ventilated
Door
Self-closing door with 122° lock, easily removable magnetic seal
Included accessories
1 plastic coated grills gn1/1 530x325mm - grill flow = 20kg
Energy specifications
Climate class
5
Net freezing volume Vnfrz (L)
352
Type
Horizontal Cabinet
Daily energy consumption E24 h
10
Annual energy consumption AEC kWh/annum
3650
Performance
High performance - This appliance is intended for use in ambient temperatures up to 40 ° C
Category
Freezing
Energy efficiency index EEI
82.29
Energy efficiency class
E
Energy efficiency class (Section 1)
E
